The pressure switch controls the tank cycle

An air compressor does not run every moment that air remains in the receiver. Its pressure switch watches receiver pressure and controls the motor between two thresholds.

  • Cut-in pressure is the lower threshold. When receiver pressure falls to it, the switch starts the motor.
  • Cut-out pressure is the upper threshold. When receiver pressure reaches it, the switch stops the motor.
  • Differential is the gap between those thresholds.

Quincy Compressor describes this range as the operating span between the minimum cut-in and maximum cut-out settings. The exact pair belongs to the compressor design and its controls.

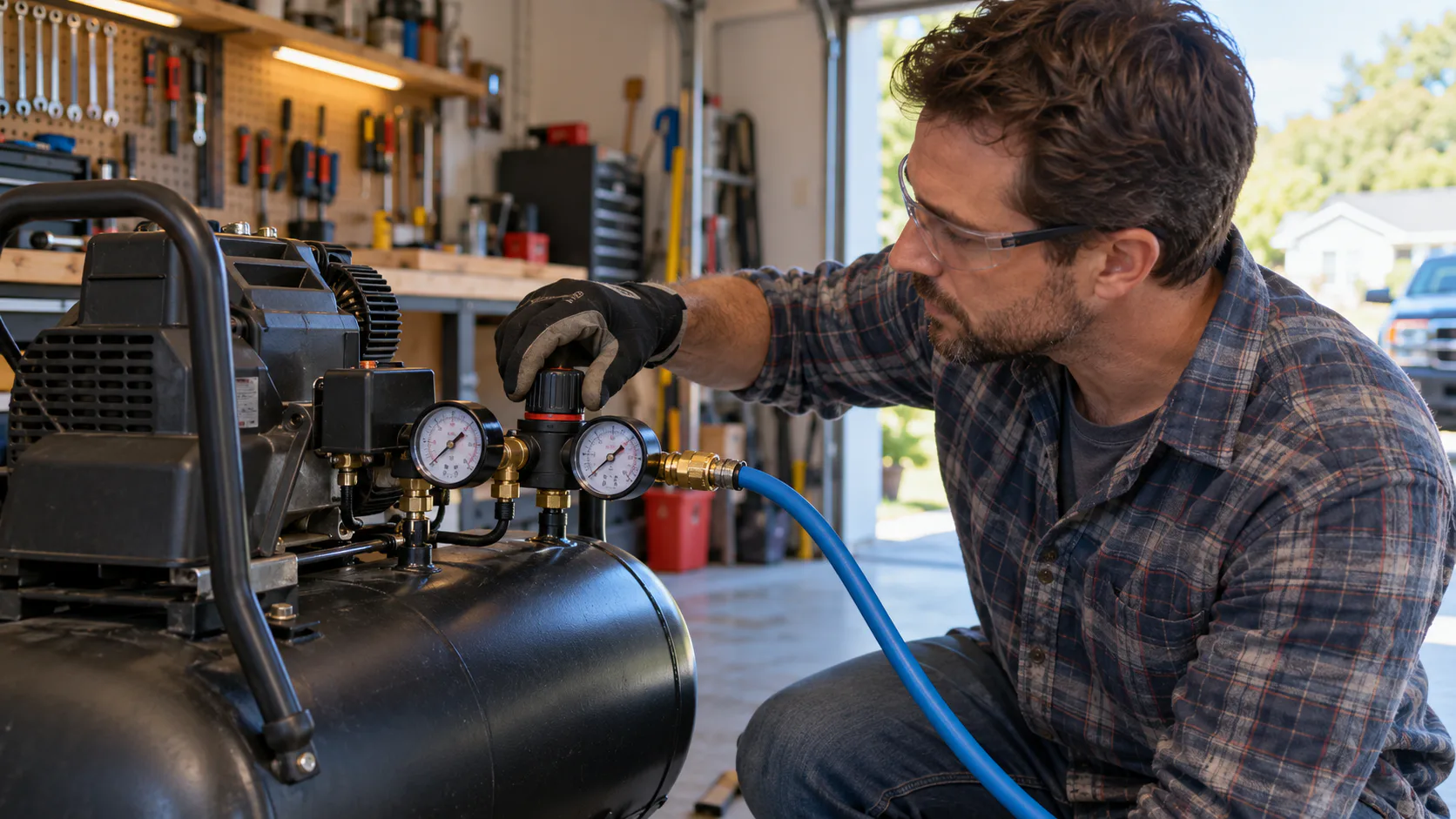

The outlet regulator has a different job

Portable compressors often show two gauges. The receiver gauge follows the cut-in and cut-out cycle. The regulated-outlet gauge shows pressure supplied toward the hose.

Turning the outlet regulator does not normally rewrite the pressure-switch thresholds. It changes downstream pressure within the system's limits. That distinction explains how a receiver can cycle between higher pressures while a pneumatic tool receives a lower working pressure.

Read why tank pressure is higher than regulated outlet pressure for the full gauge and flowing-pressure check.

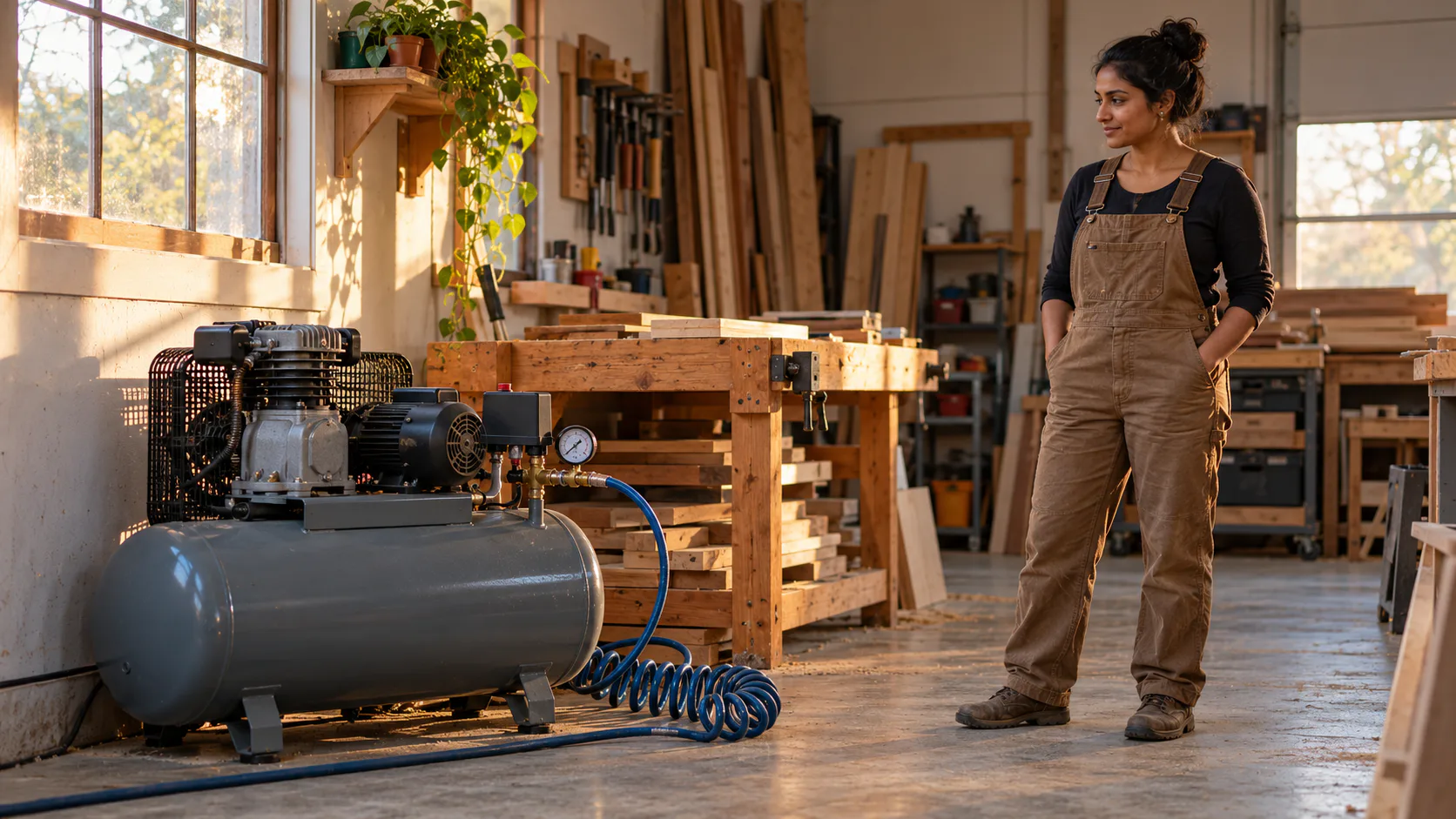

What a normal cycle looks like

Start with a receiver somewhere below cut-out. The pump runs and receiver pressure rises. At cut-out, the pressure switch stops the motor. As tools or leaks use stored air, receiver pressure falls. At cut-in, the motor starts another fill cycle.

The receiver supplies a temporary reserve between those points. The pump's delivery rate still determines how quickly air is replaced. A wide or narrow tank-pressure range does not by itself prove that a compressor can sustain a particular tool.

Tool pressure is also measured downstream. Hose losses, couplers, filters and the regulator can lower pressure at the tool while the receiver remains inside its normal range.

Why compressors use different thresholds

Manufacturers select switch settings for the pump, motor, receiver, relief valve and intended service. Atlas Copco notes that piston compressors commonly use a pressure band, while other compressor types and control systems may behave differently.

Do not transfer a generic pressure range from one compressor to another. A machine with a higher maximum tank pressure is not automatically a higher-delivery machine. Maximum PSI and air delivery answer different specifications.

The compressor nameplate and manual should identify its pressure limits and normal control behavior. If the manual publishes cut-in and cut-out values, those are the comparison points for that model.

What short cycling can indicate

Short cycling means the motor starts and stops more frequently than the machine's normal operating pattern. Possible causes include:

  • an air leak that drains the receiver;
  • a check valve or unloader problem;
  • a blocked or restricted air path;
  • high demand from connected equipment;
  • a receiver or control issue;
  • a switch fault;
  • a compressor selected poorly for the duty.

Cycle frequency depends on receiver size, air use and compressor design. There is no universal number of starts per hour for every machine. Compare behavior with the exact manual and prior operation.

If the compressor starts again while no tool is being used, isolate downstream equipment as permitted and inspect for leaks. Our air-leak guide covers that process.

When the motor does not stop or restart

A compressor that runs past its normal cut-out, never reaches cut-out, or fails to restart at cut-in needs attention.

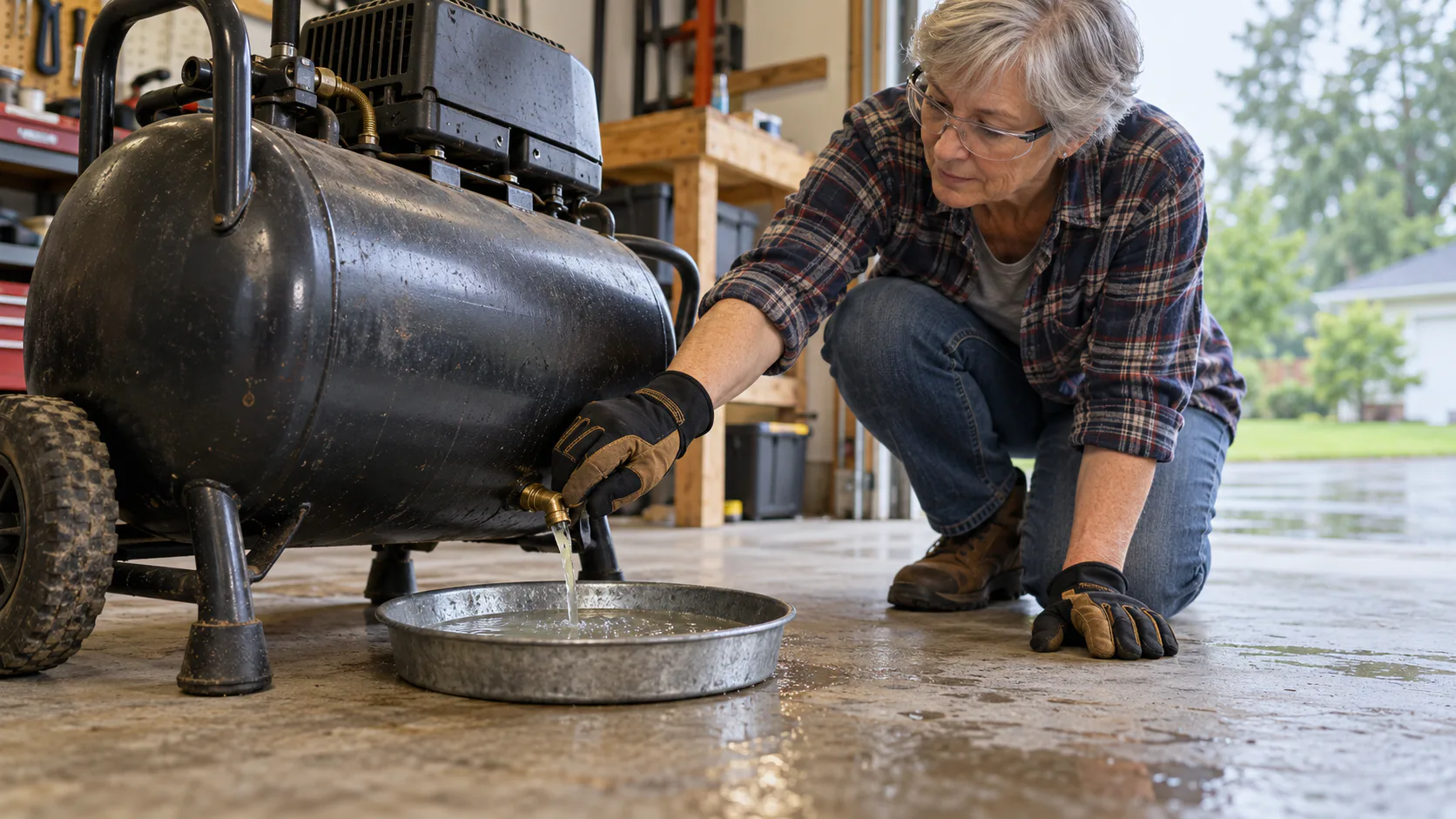

First stop using the machine and follow its shutdown procedure. Check simple external conditions such as an open drain, an obvious leak or a clogged intake. A pump that cannot build pressure can mimic a switch problem because the receiver never reaches the stopping threshold.

Do not defeat the relief valve or manually force electrical contacts. A pressure-switch diagnosis may expose live wiring and stored pressure. Use qualified service when the manual does not provide a user-level test.

About adjustment screws and springs

Pressure-switch designs vary. Some expose an adjustment procedure; others are factory-set assemblies intended for replacement. Generic instructions about turning a large spring, small spring or set screw can change both thresholds in ways that do not match a particular switch.

Adjust only when all of these are true:

  1. The exact compressor manual says the switch is user-adjustable.
  2. The manual identifies the correct adjustment and measurement procedure.
  3. The resulting settings remain inside every component rating.
  4. Power isolation and pressure-release steps are followed.

If any point is unclear, leave the factory setting in place. Raising cut-out pressure does not increase the pump's displacement and can move the system outside its approved limits.

Sources checked

Technical pages can change. Use the exact compressor manual for thresholds, wiring, pressure limits and any permitted adjustment.
